Product Description

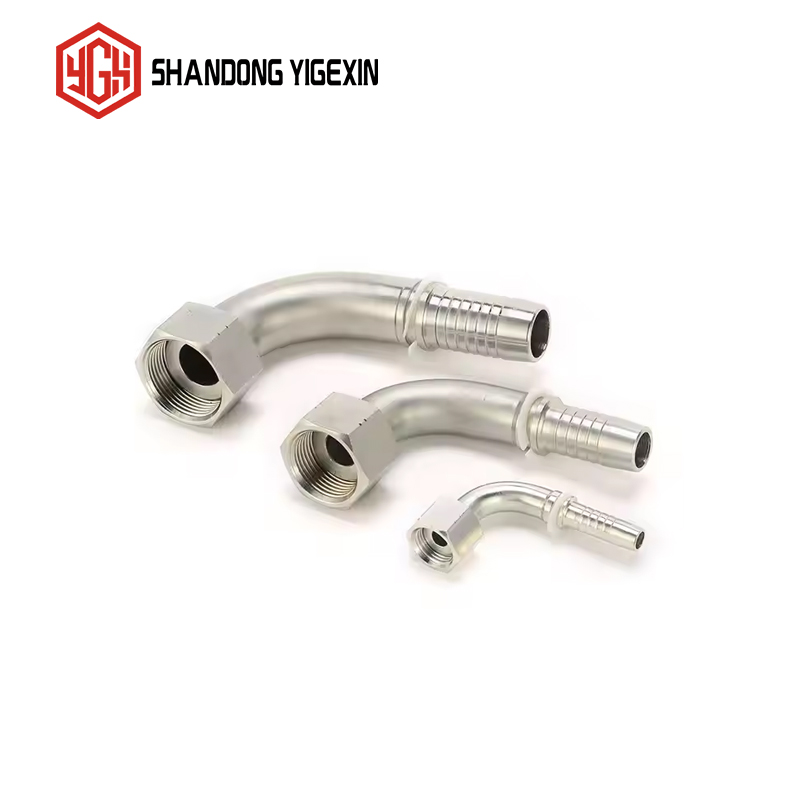

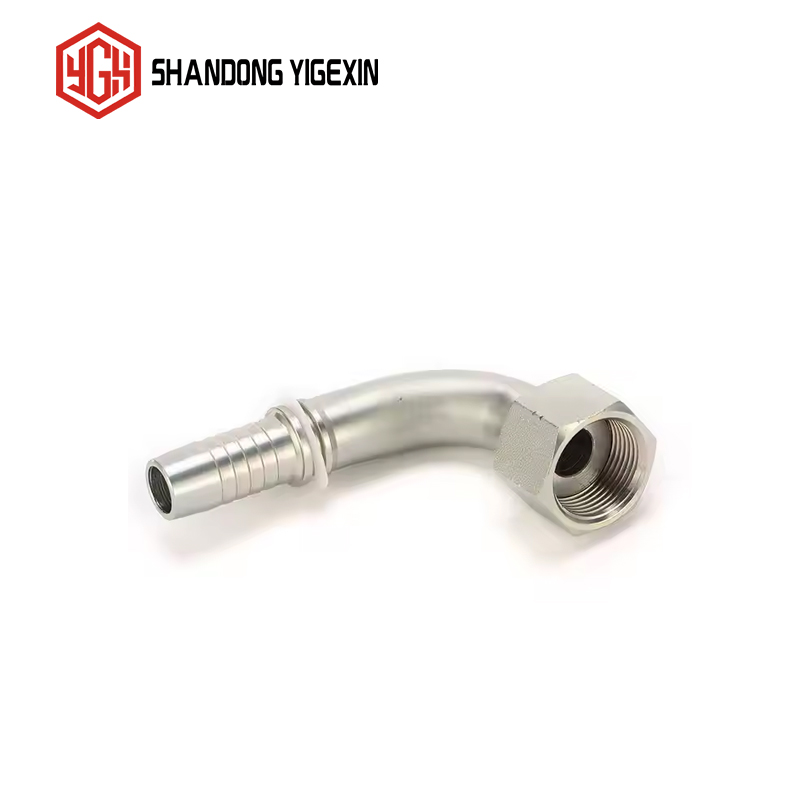

90° Angular Configuration
The 90° angle of these fittings offers a crucial advantage in redirecting fluid flow. This design is especially beneficial in piping layouts where space is limited or where a change in flow direction is required without causing excessive turbulence. It enables a more compact and efficient installation, optimizing the overall footprint of the fluid system.
ORFS Sealing Mechanism
Employing the advanced O - Ring Face Seal technology, these fittings ensure a leak - tight connection. The O - ring, housed in a precisely machined groove on the face of the female flat seat, creates a dynamic seal when mated with a compatible male fitting. As the two parts are tightened together, the O - ring compresses, filling any minute gaps and providing a robust barrier against fluid leakage. This design is highly resistant to vibration, thermal expansion, and mechanical stress, making it suitable for even the most demanding applications.
Female Flat Seat Design
The flat seat surface of the female fitting provides a stable and uniform contact area for the O - ring. This flat geometry not only enhances the sealing effectiveness but also simplifies the installation process. With a flat seat, the force applied during tightening is evenly distributed, reducing the risk of over - tightening or uneven compression, which could lead to seal failure.
Specification

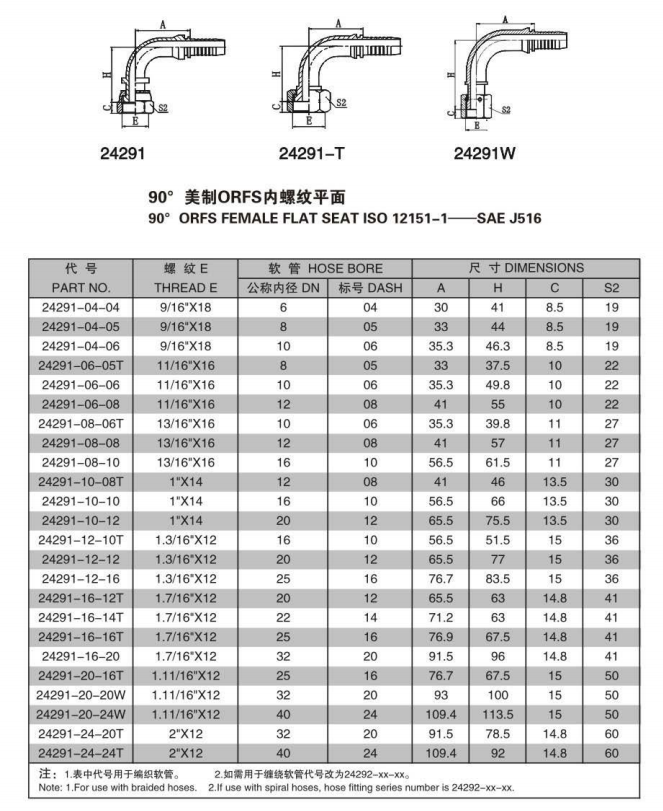

| Material： | Stainless steel、Carbon Steel、copper |
| Size： | All size |
| Weight： | *g |
| MOQ： | 100pcs |
| Packing： | Carton case |
| Color： | silver |
Advantage
In terms of connection performance
Installation Convenience: Most hydraulic hose fittings are simply designed. For example, quick couplings do not require complex tools or professional skills. The connection and disconnection can be quickly completed by hand or through simple operations.
Firm Connection: Take the crimped hose fitting as an example. Through the crimping process, the fitting and the hose are closely combined. In addition, hydraulic pipe fittings with protective structures prevent loosening through the cooperation of threads and the limiting structure. They can maintain a reliable connection under working conditions such as high pressure and vibration.
Strong Adaptability: There are a variety of specifications, forms and connection methods, which can meet the connection requirements of hydraulic systems with different pipe diameters, pressures, media and installation requirements. They can be well adapted to various hydraulic components such as pumps, valves, and cylinders.
In terms of Sealing Performance
Prevention of Leakage: Advanced sealing technologies and high-quality sealing materials, such as O-rings and sealing rings, are adopted, which can effectively prevent the leakage of media such as hydraulic oil, ensuring the stability of the system pressure and the transmission efficiency of the media.
Maintaining Cleanliness: Good sealing performance can prevent external impurities such as dust and moisture from entering the hydraulic system, avoiding system contamination and component wear, and extending the service life of the system and components.
In terms of Working Performance
High Pressure Resistance: These fittings are made of materials such as high-strength metals or high-performance plastics. Through special processing and treatment, they can withstand relatively high working pressures.
Vibration and Flexure Resistance: The hoses of metal hose fittings are hydraulically formed thin-walled stainless steel tubes, which have excellent flexibility and vibration resistance. They can adapt to situations such as equipment vibration, displacement, and distortion, protecting the hoses and ensuring the stable operation of the system.
Corrosion Resistance: Fittings made of stainless steel possess strong chemical resistance and corrosion resistance. Plastic fittings can also operate in corrosive media such as acids and alkalis, making them suitable for harsh environments.
In terms of System Maintenance
Extended Lifespan: These fittings can protect hydraulic hoses from damage such as excessive bending, twisting, and stretching, preventing premature aging and rupture of hoses. For example, swivel hydraulic fittings can eliminate hose twisting, significantly extending the service life of hoses.
Easy Maintenance: In the event of a malfunction, only the damaged fitting needs to be replaced instead of the entire hose or system, reducing maintenance costs and difficulties. Moreover, some fittings are designed to facilitate inspection and repair.
