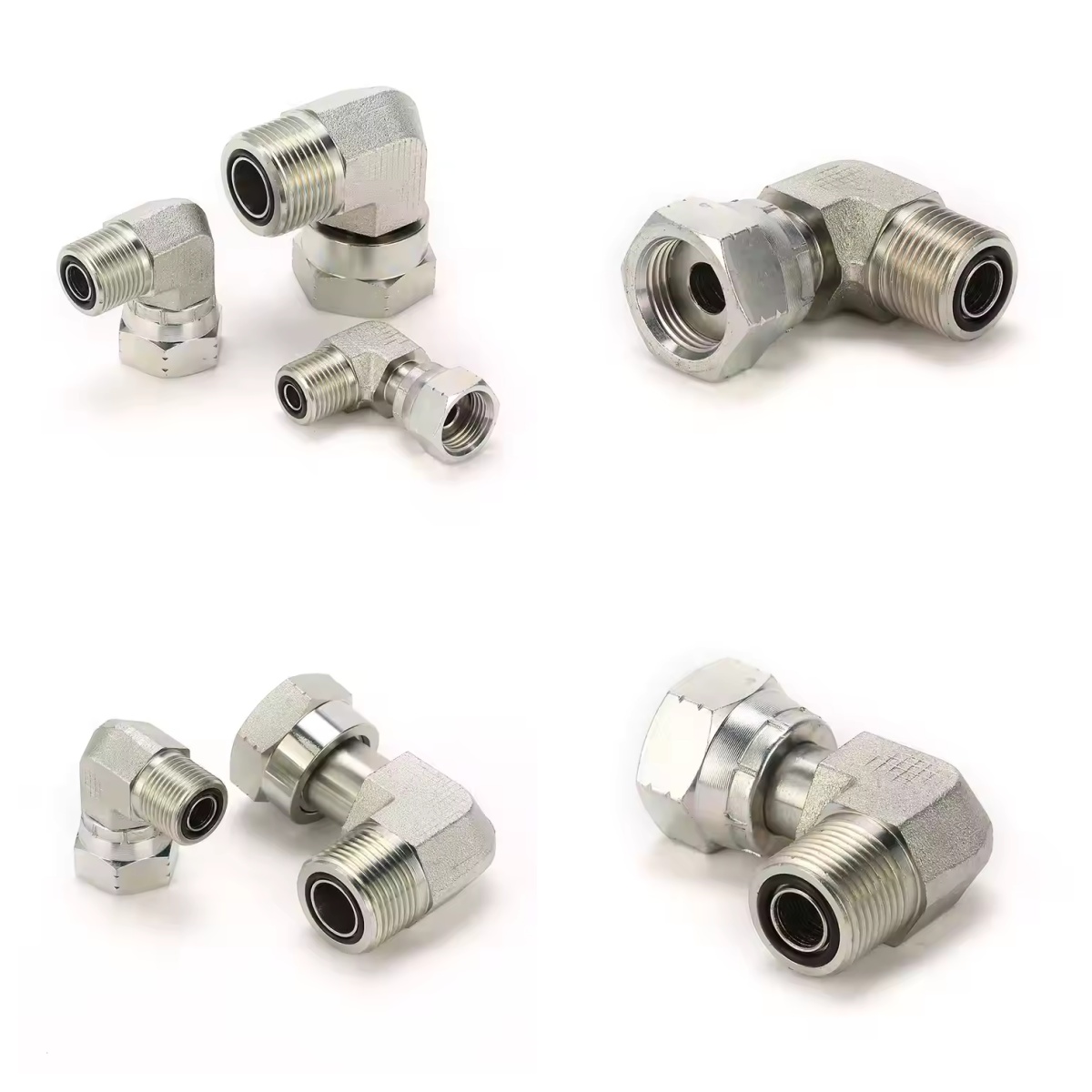

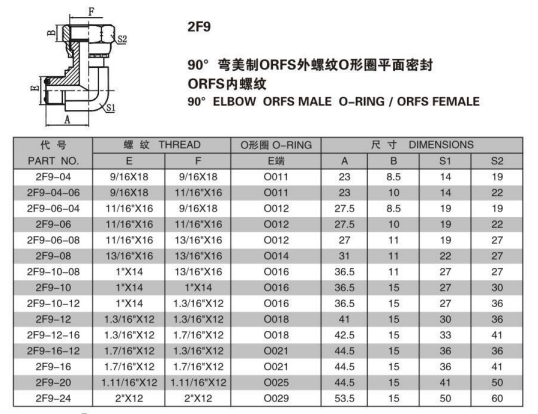

2F9 90°Elbow ORFS Male O-RING Fittings

The 90° elbow configuration of the 2F9 fittings enables efficient redirection of fluid flow, optimizing the layout of fluid transfer systems. This helps in reducing the complexity of piping networks and improving the overall efficiency of the system. By allowing for the precise routing of fluid lines, the 90° elbow design also minimizes the risk of fluid turbulence and pressure drops, ensuring smooth and consistent fluid transfer.

The combination of the ORFS male connection and the high - quality O - ring provides an outstanding leak - proof seal. This is crucial for maintaining the integrity of the fluid - transfer system, preventing fluid loss, and reducing the risk of environmental contamination. The reliable sealing performance of these fittings ensures that the system operates efficiently, without the need for frequent maintenance due to leaks. The ORFS connection's ability to withstand vibrations and pressure fluctuations further enhances the reliability of the seal, making it suitable for use in challenging industrial environments.

Constructed from high - quality materials, the 2F9 fittings are highly durable. They can resist wear, corrosion, and mechanical stress, resulting in a long service life. The corrosion - resistant stainless - steel body and the resilient O - ring materials ensure that the fittings can operate reliably in harsh environments, reducing the need for frequent replacements and minimizing maintenance costs. The high strength and toughness of the stainless - steel body also allow the fittings to withstand high pressures and mechanical stress without deformation or failure, ensuring long - term performance.

• Simple Operation: During installation, you just need to insert the pipe into the ferrule fitting and tighten the nut with a wrench. There is no need for complex operations such as welding or flaring, which can save a great deal of installation time and labor costs.

• No Special Tools Required: Generally, only commonly used tools like wrenches are needed to complete the installation. Unlike some other fittings that require specialized welding equipment or flaring tools, this reduces the installation threshold and equipment requirements.

• Good Sealing Performance: When the nut is tightened, the ferrule will deform and firmly grip the pipe, forming multiple sealing barriers. This can effectively prevent the leakage of hydraulic oil and ensure the sealing and stability of the hydraulic system.

• Strong Vibration Resistance: During the operation of the hydraulic system, even in the presence of vibrations and impacts, the clamping force between the ferrule and the pipe can ensure that the connection will not loosen, maintaining the normal operation of the system.

• Suitable for Multiple Pipe Materials: It can be connected to pipes made of various materials such as steel pipes, copper pipes, and stainless - steel pipes, meeting the requirements of different hydraulic systems for pipe materials with a wide range of applications.

• Multiple Pressure Ratings Available: There are products of different specifications and pressure ratings for selection. They can adapt to various hydraulic systems ranging from low pressure to high pressure, meeting the usage requirements under different working conditions.

• Easy Disassembly: When it is necessary to repair or replace components, simply loosen the nut, and the ferrule fitting can be removed from the pipe without causing damage to either the pipe or the fitting, which facilitates subsequent repair and replacement work.

• Reusable: After the ferrule fitting is disassembled, if components such as the ferrule and nut are not damaged, they can be used again, reducing the maintenance cost.

• Aesthetically Pleasing After Installation: Compared with connection methods such as welding, the ferrule fitting presents a neater and more aesthetically pleasing appearance after installation. There will be no traces like welding scars left behind, making the overall layout of the hydraulic system more regular.
