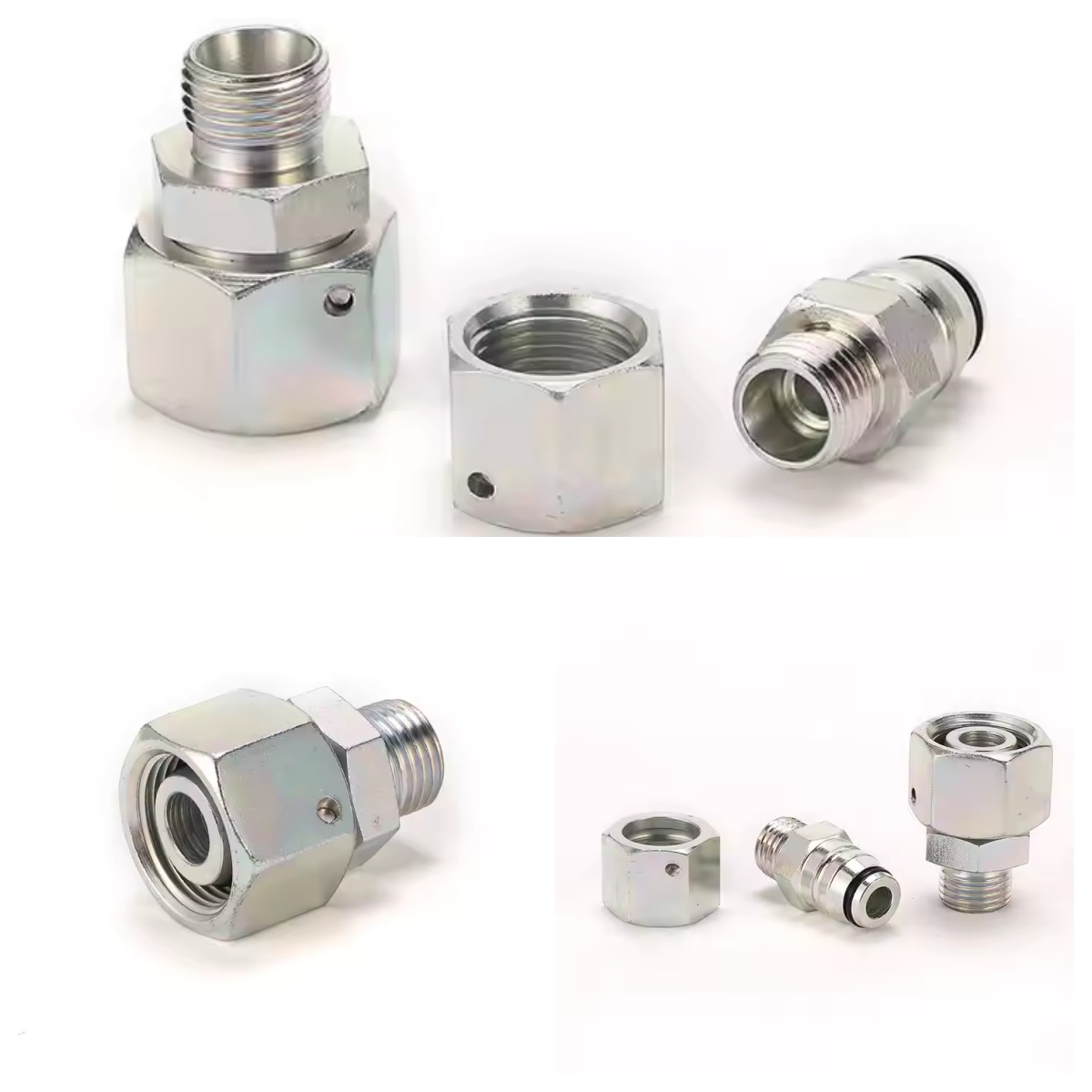

2C、2D Reducer Tube Adaptor With Swivel Nut Fittings

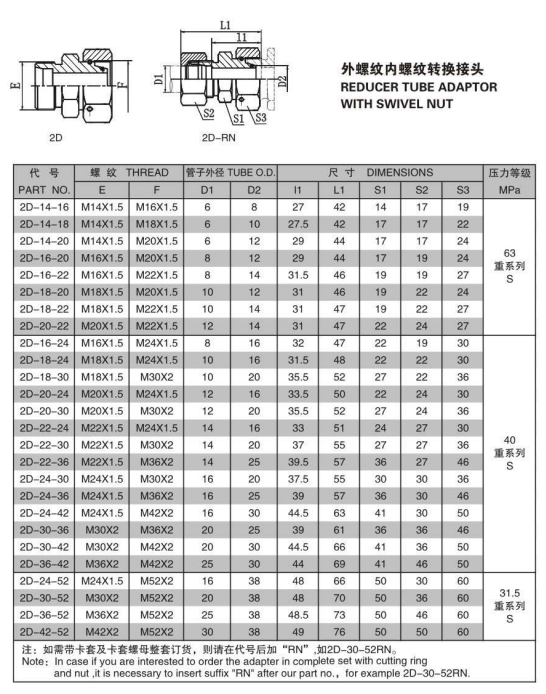

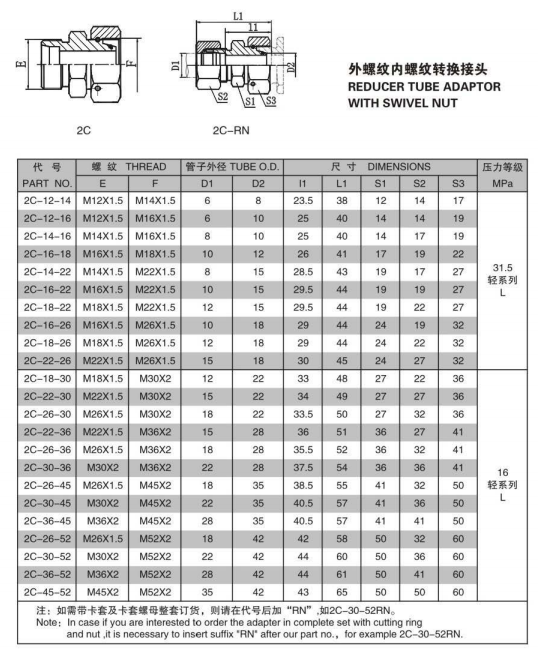

The 2C and 2D reducer tube adaptors are designed to handle high - pressure fluid systems. The 2D heavy - series adaptors, in particular, are engineered to withstand extremely high pressures, making them suitable for industrial applications such as hydraulic presses, oil and gas pipelines, and high - pressure water systems. The 2C light - series adaptors are also capable of handling significant pressures, albeit typically at a lower range compared to the 2D series. Their robust construction and high - quality materials enable them to maintain their structural integrity and sealing performance under high - pressure conditions, ensuring the safe and efficient operation of the fluid transfer system.

The swivel nut design, in combination with the appropriate installation techniques, provides a reliable leak - proof seal. When the swivel nut is tightened, it compresses the sleeve or gasket (depending on the design) against the pipe, creating a tight seal that prevents any fluid leakage. This is essential in applications where the leakage of fluids could lead to safety hazards, environmental pollution, or a loss of system performance. In hydraulic systems, for example, a leak - free connection is crucial to ensure the proper transfer of hydraulic fluid and the accurate operation of hydraulic cylinders and motors.

These adaptors are engineered to precisely reduce the diameter between two pipes. The reduction in diameter is carefully calculated and manufactured to maintain the proper flow rate and pressure of the fluid. By smoothly transitioning the fluid from a larger - diameter pipe to a smaller - diameter one, they help prevent turbulence and pressure drops that could otherwise affect the performance of the system. This precise reducing function is crucial in applications where accurate fluid control is necessary, such as in high - precision hydraulic machinery or chemical processing plants.

• Simple Operation: During installation, you just need to insert the pipe into the ferrule fitting and tighten the nut with a wrench. There is no need for complex operations such as welding or flaring, which can save a great deal of installation time and labor costs.

• No Special Tools Required: Generally, only commonly used tools like wrenches are needed to complete the installation. Unlike some other fittings that require specialized welding equipment or flaring tools, this reduces the installation threshold and equipment requirements.

• Good Sealing Performance: When the nut is tightened, the ferrule will deform and firmly grip the pipe, forming multiple sealing barriers. This can effectively prevent the leakage of hydraulic oil and ensure the sealing and stability of the hydraulic system.

• Strong Vibration Resistance: During the operation of the hydraulic system, even in the presence of vibrations and impacts, the clamping force between the ferrule and the pipe can ensure that the connection will not loosen, maintaining the normal operation of the system.

• Suitable for Multiple Pipe Materials: It can be connected to pipes made of various materials such as steel pipes, copper pipes, and stainless - steel pipes, meeting the requirements of different hydraulic systems for pipe materials with a wide range of applications.

• Multiple Pressure Ratings Available: There are products of different specifications and pressure ratings for selection. They can adapt to various hydraulic systems ranging from low pressure to high pressure, meeting the usage requirements under different working conditions.

• Easy Disassembly: When it is necessary to repair or replace components, simply loosen the nut, and the ferrule fitting can be removed from the pipe without causing damage to either the pipe or the fitting, which facilitates subsequent repair and replacement work.

• Reusable: After the ferrule fitting is disassembled, if components such as the ferrule and nut are not damaged, they can be used again, reducing the maintenance cost.

• Aesthetically Pleasing After Installation: Compared with connection methods such as welding, the ferrule fitting presents a neater and more aesthetically pleasing appearance after installation. There will be no traces like welding scars left behind, making the overall layout of the hydraulic system more regular.

The hydraulic ferrule fitting is a commonly used connecting component in hydraulic systems and has a wide range of applications, mainly reflected in the following fields:

• Machine Tool Equipment: It is used to connect the hydraulic pipelines of machine tools, such as the connections between hydraulic pumps, hydraulic cylinders and control valves, ensuring the smooth transmission of hydraulic oil and achieving precise control of actions such as the feed of the machine tool worktable and the clamping of the cutting tool.

• Injection Molding Machines: In the hydraulic system of injection molding machines, it connects various hydraulic components. For example, it conveys the high-pressure oil output by the oil pump to the mold clamping cylinders, injection cylinders, etc., ensuring the stable execution of process actions such as mold clamping, injection, and pressure holding of the injection molding machine.


• Excavators: Applied in the hydraulic system of excavators, it connects the hydraulic oil pipes, supplies pressure oil to the hydraulic cylinders of working devices such as the digging arm and the bucket, enabling operations like digging and loading/unloading. It is also used to connect the hydraulic motors to drive the traveling mechanism and the slewing mechanism.

• Cranes: In the hydraulic systems for hoisting, luffing, slewing, etc. of cranes, the hydraulic ferrule fittings connect various hydraulic components into a complete system, allowing the crane to safely and efficiently complete the tasks of lifting and handling heavy objects.

• Automobile Production: In the hydraulic equipment on the automobile production line, such as the stamping machines for automobile parts and hydraulic fixtures, the hydraulic ferrule fittings are used to connect the hydraulic pipelines, ensuring the normal operation of the equipment and improving production efficiency and product quality.

• Automobile Maintenance: During the process of automobile maintenance, it is used to connect the maintenance equipment with the hydraulic system of the automobile. For example, when repairing the automobile braking system, it connects the brake fluid filling equipment with the automobile braking pipeline, ensuring the smooth progress of the maintenance and debugging work of the braking system.


• Steel Rolling Equipment: In the hydraulic screw-down system and hydraulic roll bending system of steel rolling mills, hydraulic ferrule fittings connect the hydraulic pipelines, providing reliable hydraulic connections for the adjustment of the position of the rolls, the control of the rolling force, etc., ensuring the rolling accuracy and quality of steel products.

• Smelting Equipment: It is used to connect the hydraulic pipelines of the hydraulic tilting devices of smelting furnaces, hydraulic clay guns and other equipment, ensuring that these devices can operate stably in a high-temperature and harsh working environment and complete operations such as furnace tilting and tapping hole blocking.


• Ship Power System: In the main engine starting system and steering gear hydraulic system of ships, hydraulic ferrule fittings are used to connect the hydraulic pipelines, providing reliable hydraulic connections for the power transmission and direction control of ships, ensuring the safe navigation of ships.

• Ship Loading and Unloading Equipment: In the hydraulic systems of ship loading and unloading equipment such as ship cranes and winches, hydraulic ferrule fittings connect various hydraulic components, enabling various actions of the loading and unloading equipment and improving the loading and unloading efficiency of ships.
