Product Description
Product Overview

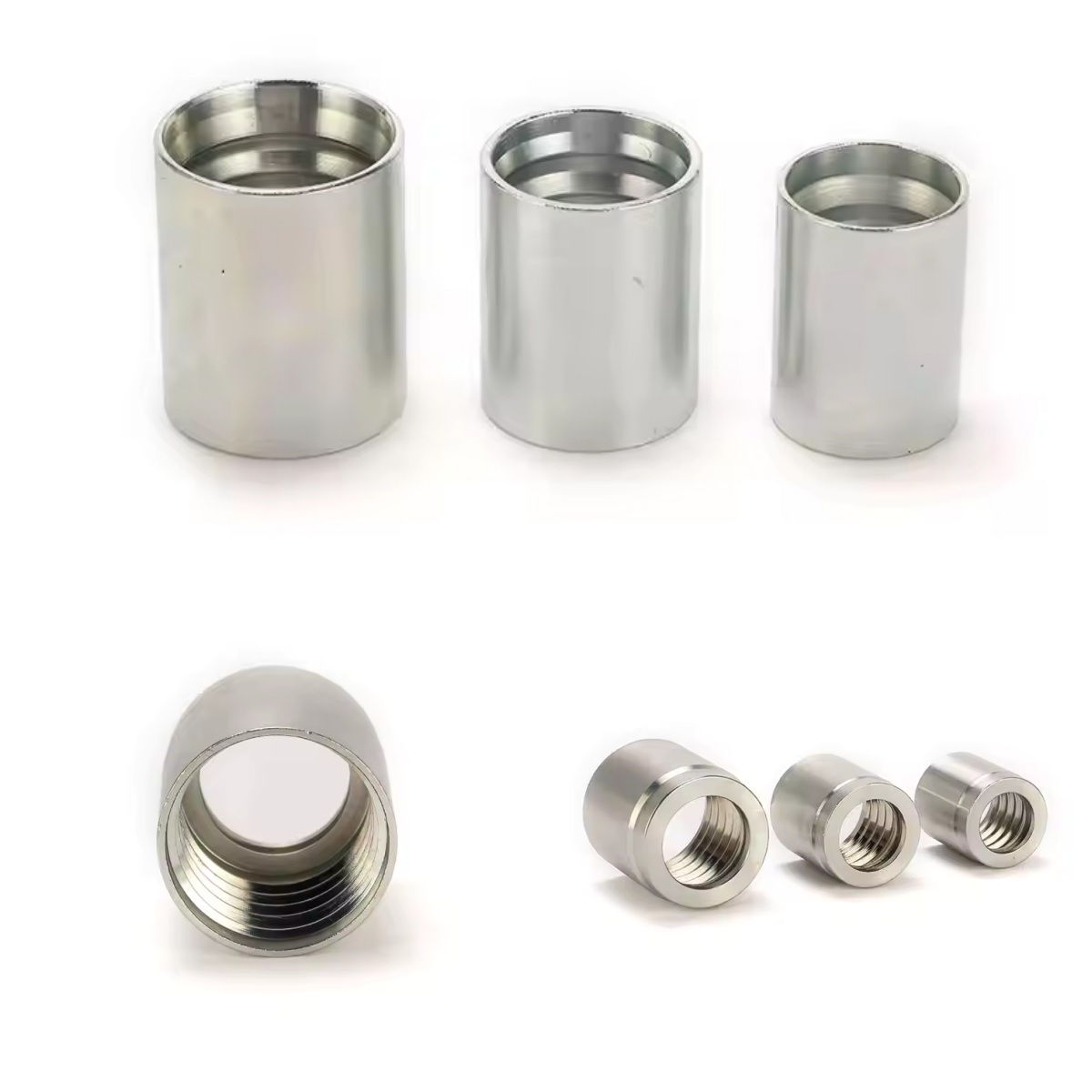

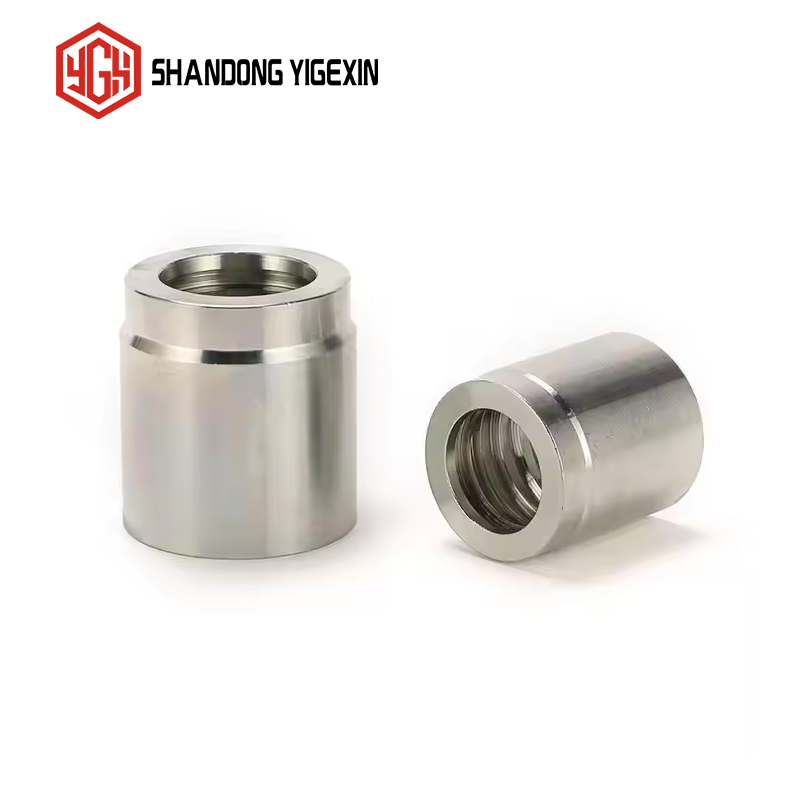

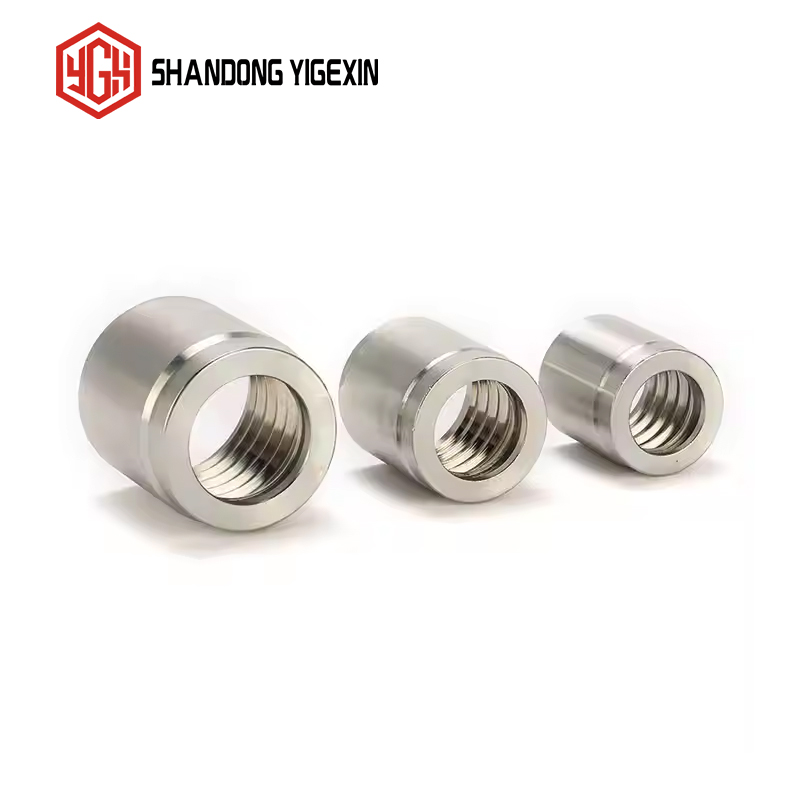

The 03310 series ferrules are expertly engineered to be fully compatible with SAE 100 R2AT and EN 853 2SN hydraulic hoses. As an essential part in hydraulic systems, they serve as the connecting link between hydraulic hoses and fittings. Their performance has a direct bearing on the stability, reliability, and safety of the entire hydraulic system. Whether in high - precision industrial production equipment or construction machinery operating in harsh environments, the 03310 ferrules ensure the efficient operation of the hydraulic system with their excellent adaptability.
High - Quality Material Selection
The main body of the ferrule is made of carbon steel, which combines high strength and good toughness. In high - pressure environments, the carbon - steel - made ferrule can withstand substantial pressure without deformation. This effectively guarantees the stability of the connection part, preventing system failures caused by ferrule damage and providing a solid foundation for the long - term stable operation of the hydraulic system.
Advanced Surface Treatment
With the application of Cr 3+ surface treatment technology, the ferrule has successfully passed the rigorous 96 - hour salt spray test. In corrosive working environments such as humidity and salt - laden atmospheres, this surface treatment forms a dense protective film on the surface of the ferrule. As a result, it significantly enhances the ferrule's rust and corrosion resistance, remarkably extending the product's service life and reducing maintenance and replacement costs. This makes it suitable for harsh working conditions like those in ship transportation and offshore engineering.

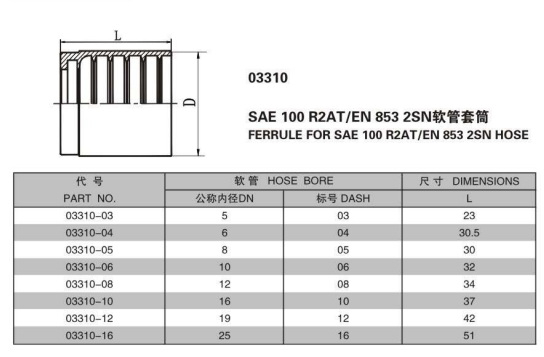

Specification
| Material： | Nitrile rubber、Stainless steel |
| Size： | All size |
| Weight： | *g |
| MOQ： | 100pcs |
| Packing： | Carton case |
| Color： | black |
Advantage
It has excellent sealing performance
Preventing leakage: The hydraulic hose ferrule fits tightly with the hose and the connector, which can form an effective seal. It ensures the circumferential uniform distribution of the crimping pressure, achieving concentric sealing and preventing the leakage of hydraulic oil.
Adaptable to various working conditions: Even under complex working conditions such as vibration and pressure fluctuations, the ferrule can maintain its sealing performance, ensuring the stable operation of the hydraulic system.
It has a firm and reliable connection
Strong anti-pullout ability: The ferrule is connected to the hose through crimping and other methods, which can provide a powerful connection force. For example, in the ferrule of the high-pressure hose patent of Weifang Jiateng Hydraulics, the design of the convex teeth and the accommodating grooves on its inner side can ensure that the resin tube remains securely fastened after crimping, preventing the hose from coming off under high pressure.
High pressure resistance: It is manufactured from high-strength materials and can withstand relatively high hydraulic pressures.
Protect the hose
Enhanced wear resistance: The ferrule can protect the hose from external wear, scratches and other damages, thereby extending the service life of the hose. Especially when the hose is in contact with other components or operating in harsh environments, it can prevent the outer surface of the hose from being damaged.
Enhanced wear resistance: The ferrule can protect the hose from external wear, scratches and other damages, thereby extending the service life of the hose. Especially when the hose is in contact with other components or operating in harsh environments, it can prevent the outer surface of the hose from being damaged.Buffer pressure shock: It can, to a certain extent, buffer the pressure shock in the hydraulic system, reduce the instantaneous pressure changes on the hose, and lower the risk of the hose bursting or being damaged due to pressure shock.
Application
Mechanical manufacturing
In the hydraulic system of the robotic arm in the automated production line, the hydraulic hose ferrules connect various components to ensure the transmission of power, and they can adapt to the multi-angle and multi-directional movements of the robotic arm.
Petrochemical industry
In the processes of oil and natural gas extraction and refining, it is used in the hydraulic systems that connect drilling equipment, pumping equipment and other devices. It can withstand high pressure and resist chemical corrosion, ensuring the safe and stable operation of the systems.
Construction machinery
For construction equipment such as cranes and excavators, the hydraulic systems feature high pressure and strong vibrations. The hydraulic hose ferrules provide a firm connection and reliable sealing, which can improve the stability of the systems and extend their service life.
Agricultural machinery
The hydraulic systems of agricultural machinery such as tractors and combine harvesters connect various components through hydraulic hose ferrules, enabling them to operate normally in harsh outdoor environments and complex working conditions.
Ship transportation
It is applied to the hydraulic systems of ship cranes, deck mechanical equipment, etc., and can maintain good performance in corrosive environments such as the humidity and salt spray in the ocean.
Medical equipment
In the hydraulic systems of some medical equipment such as hydraulic operating tables and rehabilitation devices, the hydraulic hose ferrules ensure the precision and stability of hydraulic transmission, providing reliable support for medical operations.
